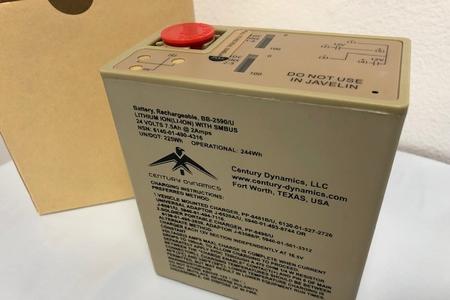

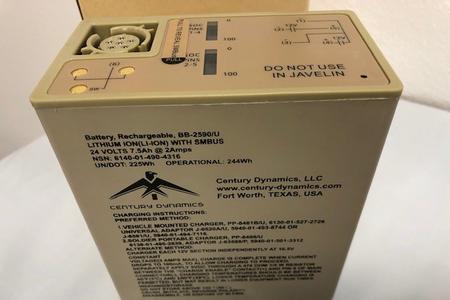

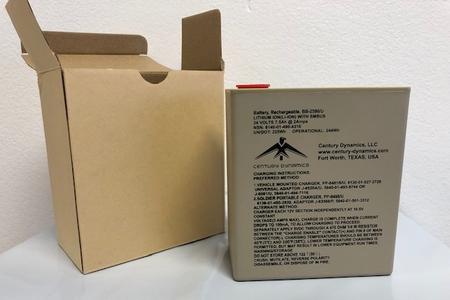

BB-2590/U SMBUS

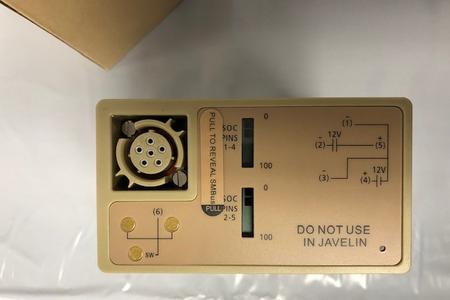

NSN 6140-01-490-4316  High performance rechargeable Lithium Ion battery with instantaneous start up. Dual state of charge “gas gauge” 2 separate 5 segment LCD’s with constant display. This product complies with SMBus v1.1, SBData  v1.1. Durable high impact plastic housing and connector enclosure 

High capacity, performance verified, hermetically sealed, lithium-ion cells. Protection against short circuit and improper charge This battery meets the requirements of MIL-PRF-32052(CR), MIL/PRF-32052/1 & TRCEOMBB01 for: Battery voltage Cycle life  Immersion   Mechanical and thermal shock. Vibration  Insulation resistance  High rate discharge  Low temp. discharge  Full capacity discharge

For use in SINCGARS & ATCS(PRC-104, 117, 119), Falcon (PRC-138, 117) KY-57, MXF430(V), AN/PSC-5, M22 & other equipment. Replacement for BB-2590/U, BB-390A/U, BB-390B/U, BB-490/U, BB-590/U, BA-5290/U, BA-5590/U, NSN: 6140-99-676-4908 Cell chemistry Lithium Ion  Nominal voltage 28.8V or two 14.4V sections depending on connection Typical capacity  7.5Ah @ 24V, 15.0Ah @ 12V Max discharge 20.0A in 12V mode, 10.0A in 24V mode Max pulse discharge 36.0A in 12V mode, 18.0A in 24V mode Nominal dimensions 62 x 112 x 127 mm Nominal weight 1.30kg Connector Floating type per U.S Army DWG # SC-C-179495 Case material Modified ABS, desert tan Operating temperature -20oC to +60oC Shelf Life Five (5) years under controlled storage. Disposal Check with local regulations
